Introduction

GeoDin is a geotechnical data management software primarily focused on geotechnical ground investigation. It also supports environmental data management.

Key features of GeoDin include:

• Compliance with industry standards such as ASTM D2487/D2488, BS 5930, EN ISO 14688/14689, and similar.

• Support for local German standards like SEP3 and KA5.

• Customizable data models and formulas.

• Visualization tools with free templates

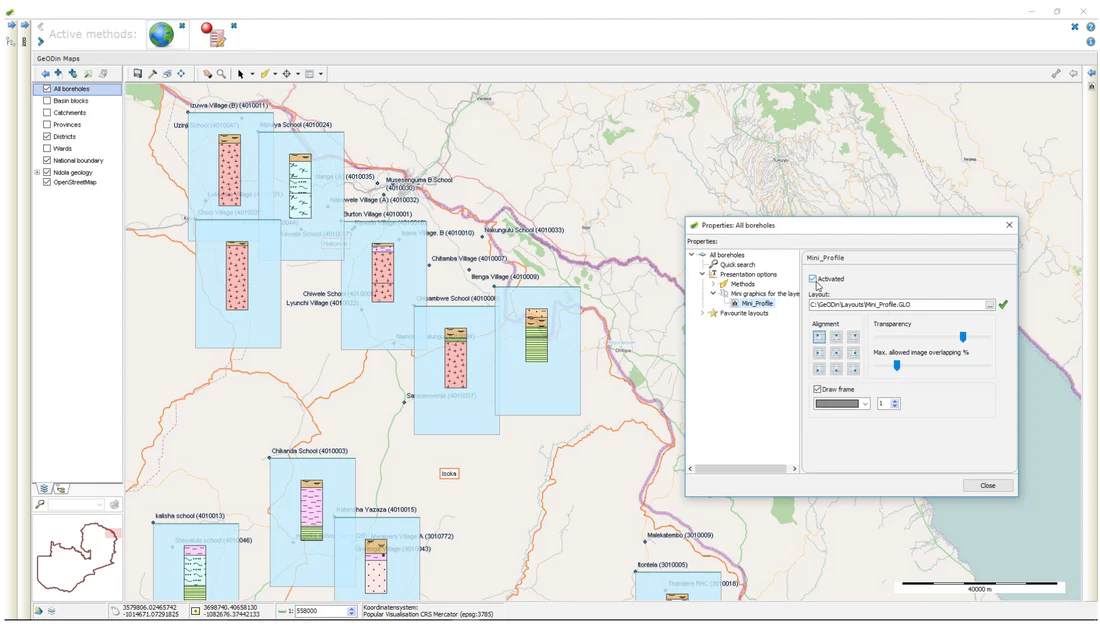

• Integrated GIS (GeoDin Maps) for comprehensive analyses and graphics.

The GeoDin product suite

GeoDin is the Windows client for office-side data management, reporting, and template editing. It handles databases via different object types — each object type is a specific database structure (collection of tables) designed for a specific purpose.

GeoDin itself is 2D only. The product suite extends into the field and into 3D via two companion products:

• GeoDin Onsite — the field/tablet data-collection companion, a .NET 8 Windows application (tablet or PC). Onsite has no native server front-end; project metadata and data exchange between Onsite and the desktop client go via GeoDin ML files.

• GeoDin Ground — a free plugin for Autodesk Civil 3D (separate Civil 3D licence required) that connects directly to a GeoDin database and renders boreholes in 3D.

Continue to Install & activate to set up GeoDin on your machine.
